Productname：	Slab Crane For Loading & Unloading,(WSM1100)
Product Number：
Product Introduction：

Note: with the progress of technology, the product structure and parameters will be continuously improved, and the sample information will be subject to the real object.

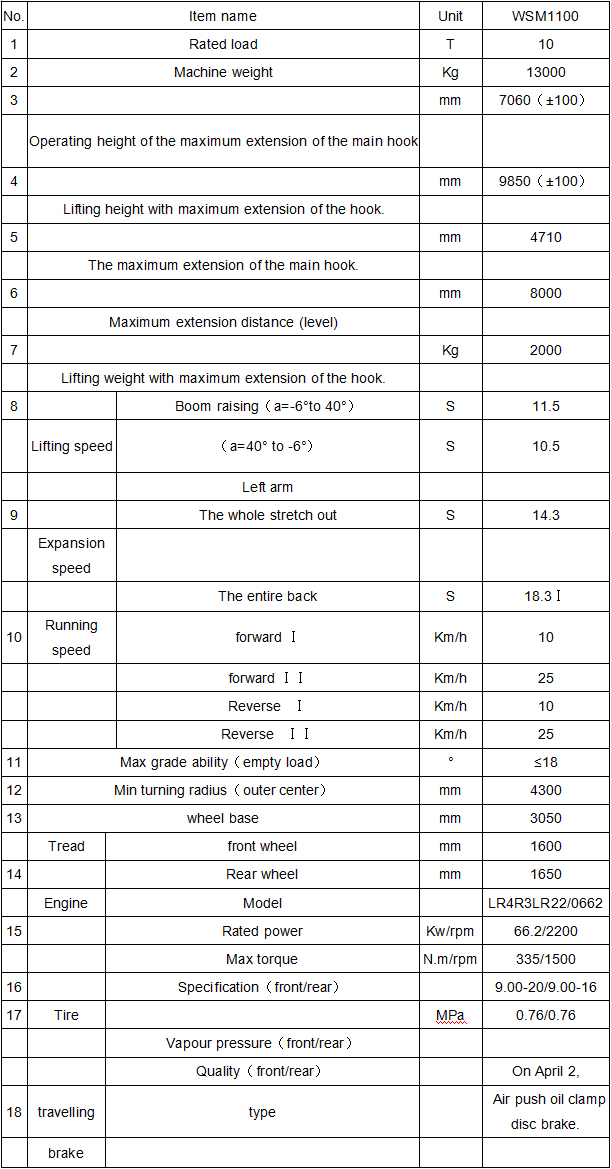

Telescopic forklift loader WSM1100 standard configuration





Dongfanghong engine:LR4R3LR22/0662





Gear box:YQX100

Drive axle: 08BT

l Cab:WSM made cab(special steel),radio, USB player





 Optional parts

l Air conditioner

l Pilot control

Attachment:boom,hanger,hanging basket, automatically adjustable fork, bucket,holding clamp device, clipping fork, string rodVehicle terminal system(with GPS positioning,real-time monitoring of traffic information)



Telescopic Forklift Loader

 Production characteristics





1.Telescopic Forklift Loader WSM1100 This product integrates advanced technology of forklift truck and cross country telescopic boom fork truck.It’s suitable for stone enterprise, industrial and mining enterprise, cargo handling, short-distance transport, cargo yard in the port, warehouse and station.

2.Telescopic Forklift Loader WSM1100 The famous brand engine  reasonable  match with the domestic gear box, which make full use of the engine power, reduce fuel consumption greatly, and save cost for user.

3.Telescopic Forklift Loader WSM1100 four wheel driving in front wheel , which improve the load capacity of front axle,  make safer.

4.Telescopic Forklift Loader WSM1100 The horizontal oil cylinder provide steering for the rear axle. Large steering angle . It reduces the min.turning radius of the whole machine, and makes better passing performance. It’s suitable for working in a limited space.flexible steering, which improve the operating efficiency of the whole machine.

5.Telescopic Forklift Loader WSM1100 The frame is welded by integral frame. The frame is high strengthen and safe. The installation of each component is rationally arranged in the form of forklift truck chassis. The spacious tool box is convenient for users to put spreader and rope tools, which makes the appearance of vehicle rationalized and regularized.

6.Telescopic Forklift Loader WSM1100 The material of telescopic arm is made of imported steel. The structure of arm is welded in the form of hexagon to improve the arm stricture strength.

7.Telescopic Forklift Loader WSM1100 The folding fork can provide a wider field of vision and make users drive more flexibly and conveniently when no need folding or lifting cargo.

8.Telescopic Forklift Loader WSM1100 The control system of work device is using one handle controlling and two control modes to reduce the trouble of multi-lever. And the manipulation is more convenient and flexible.

9.Telescopic Forklift Loader WSM1100 The main hydraulic components are imported,which make the whole machine more stable and safer.

Note:Due?to?technical?innovations,?above all are?for reference only,all information subject to finnal confirmation!
